Rig Specs
These protocols are designed to run on the Reiser Lab’s G3 24 x 3 LED panel setup.
LED arena

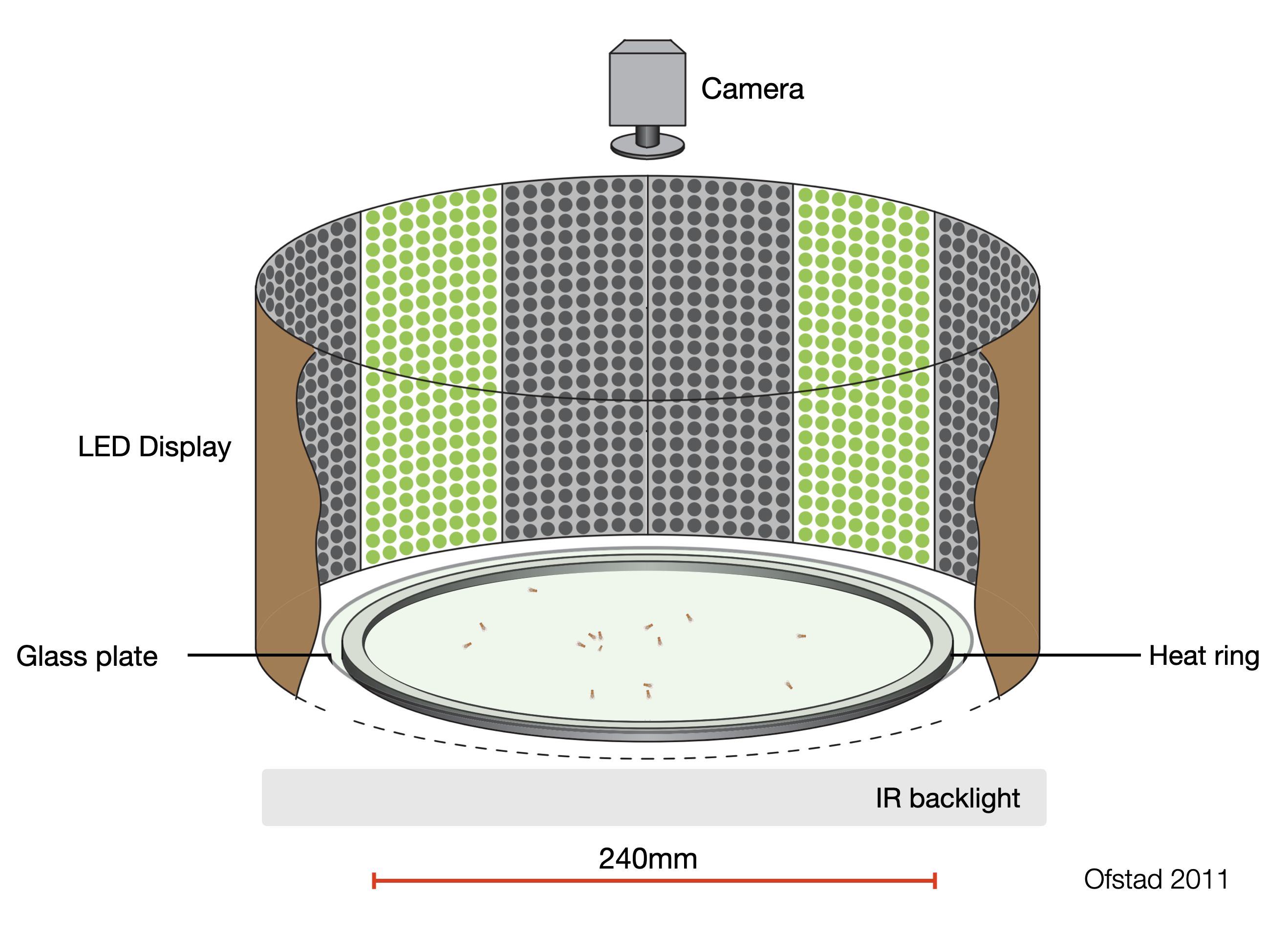

The arena consists of 24 panels arranged in a full cylinder (360° azimuth), 3 panels high. Each panel is 8 x 8 pixels, giving a total resolution of 192 pixels wide by 24 pixels high. The LEDs are green with a peak wavelength of ~570 nm.
| Parameter | Value | Units |
|---|---|---|
| Panel layout | 24 x 3 | panels |
| Resolution | 192 x 24 | pixels |
| Visual angle per pixel | 1.875 | degrees |
| Azimuth coverage | 360 | degrees |
| Elevation coverage | 45 | degrees |
| LED wavelength | ~570 | nm (green) |
| Greyscale levels | 1-bit (2), 2-bit (4), 3-bit (8), or 4-bit (16) | — |
Arena geometry
The following constants are used throughout the processing code for converting between pixel coordinates and physical distances:
| Parameter | Value | Units |
|---|---|---|
| Arena radius | 119.0 (496 px) | mm |
| Arena center | [126.6, 124.7] ([528, 520] px) | mm |
| Pixels per mm (PPM) | 4.1691 | px/mm |
| Camera frame rate | 30 | fps |
Software requirements
| Software | Purpose |
|---|---|
| MATLAB | Protocol execution, data processing, analysis |
| Statistics and Machine Learning Toolbox | Statistical tests |
| Image Processing Toolbox | Video processing |
| Circular Statistics Toolbox | Phototaxis analysis |
| G4_Display_Tools | LED panel control (panel_com) |
| FlyTracker | Video tracking (produces trx.mat, feat.mat) |
| JAABA | Required for stimulus video generation |
| BIAS (SimpleBiasCameraInterface) | Camera acquisition (.ufmf recording) |
| PControl | MATLAB GUI for connecting to LED panels |
There is a lot of useful, and more detailed documentation on the specifications of the G3 arena and how to design and run protocols here.
